| Station: |
| JJY
Ohtakadoya-yama
|
JJY
Hagane-yama |
Frequency: |
| 40 kHz |
60 kHz |
Transmitting
power: |
| 50 kW |
50 kW |
Location: |
| Miyakoji Vil.,
Fukushima Pref.,
Japan |
Fuji Vil.
Saga Pref.,
Japan |
Receiving
area: |
| 1000 km |
1000 km |
Geographical
coordinates: |
| 37° 22' N,
140° 51' E
|
33° 28' N,
130° 11' E
|
Time
of transmission: |
| |
permanent |
Modulation: |
| 100% |
100% |
|
|
 |
|
 |
|
Modulation
The carrier amplitude is 100% at the beginning of each second and is switched
to 10% after 500 ms (binary one) or after 800 ms (binary zero) or after
200 ms for Position-identifier marker (P0...P5) and frame reference marker.

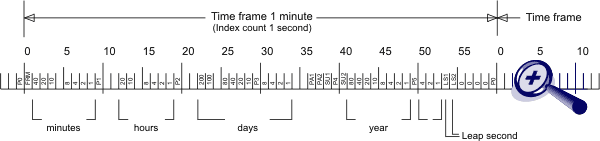

Time-Code Format
The time-code format consists of 1-minute time frames. A time frame contains
BCD-coded information of minutes, hours, days, weeks and year. In addition,
there are 6 position-identifier markers (P0 thru P5) with reduced carrier
amplitude of 800 ms duration.
Please verify this information before commercial use !
